汽車遙控器應用優質的有源晶振X1G005601018100，愛普生公司自成立以來一直堅持把每一款產品的工藝，進行嚴格化，高標準的把控，并采用高新技術的集合，塑造出極高的產品價值，為打造高超的商業價值，使得所生產的石英晶振產品能夠一路保持在晶振產品的暢銷榜，同時又實現了名利以及財富的收獲，并獲得無數的好評與稱贊。

貼片振蕩器	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005601017400	SG-8018CG	33.500000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017500	SG-8018CG	3.570000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017600	SG-8018CG	8.037500 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017700	SG-8018CG	80.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017800	SG-8018CG	35.890700 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018000	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018100	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018200	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018300	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018400	SG-8018CG	49.152000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018500	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018600	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018700	SG-8018CG	37.125000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018800	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018900	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019000	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019100	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019200	SG-8018CG	7.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019300	SG-8018CG	8.727000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019400	SG-8018CG	21.606000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019500	SG-8018CG	39.321600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm

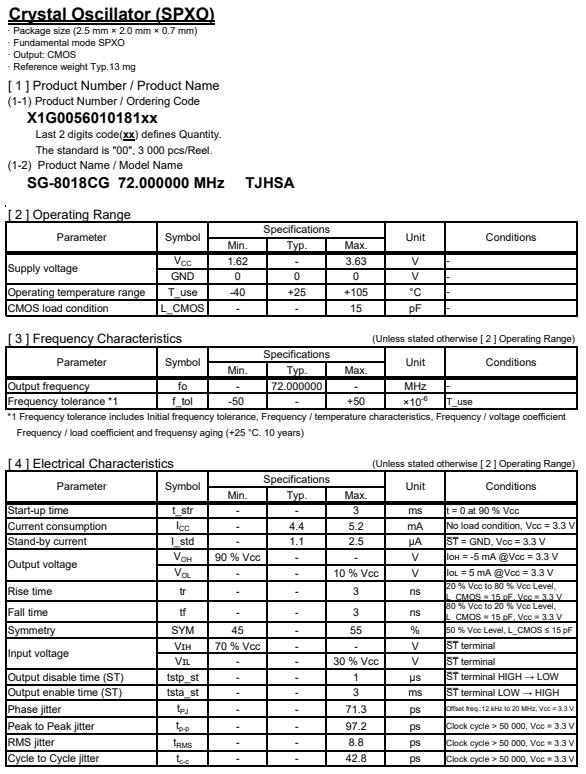

愛普生的這款SG-8018CG晶振，愛普生晶振編碼X1G005601018100，頻率72.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作溫度-40至+105°C，頻率公差±50ppm，額外的OptionsN /OSC類型可編程時鐘OSC，這是一款低抖動，低相噪的可編程晶振，有源晶振，愛普生石英晶振，具有非常高的穩定性,非常適用于對設計面積敏感的汽車遙控器，智能穿戴設備設計,具備優良的耐熱性與耐環境特性,成為汽車遙控器，智能穿戴設備時鐘的最佳之選。

汽車遙控器應用優質的有源晶振X1G005601018100，有源晶振自其誕生以來就一直在通信、電子、航海航空航天及醫學等領域扮演重要的角色,具有廣泛的用途。在無線電技術發展的初期,它就在發射機中用來產生高頻載波電壓,在超外差接收機中用作本機振蕩器,成為發射和接收設備的基本部件。
