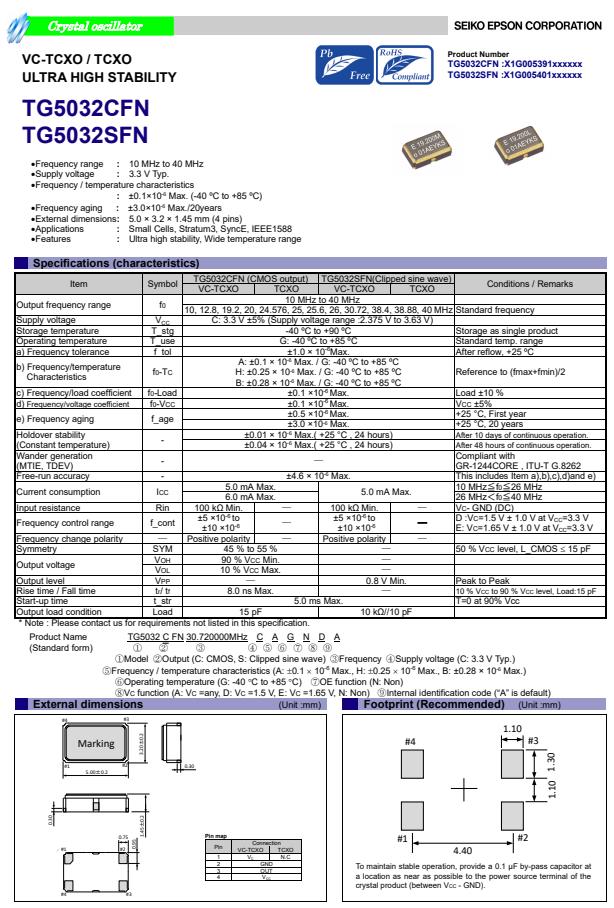

藍牙彩燈控制模塊溫補晶振編碼X1G005401001300，市場的劇烈變化與高科技發展，有著必然的聯系，當新興的高科技向我們涌來時，那便說明高科技達到頂峰狀態，而能夠在此抓住機會的企業更是少之又少，愛普生公司作為敢于折騰的企業，從來不放棄一絲一毫的機會，并針對當下市場開發出了TG5032SFN晶振，編碼X1G005401001300，頻率20.000000兆赫，輸出剪波正弦波，電源電壓2.70~3.00V，電源電壓(一般)2.850 V，尺寸(LxWxH)5.0 x 3.2 x 1.4mm，操作溫度-40至++85°C，頻率公差+/- 1.0ppm，這是一款CMOS輸出晶振，溫補晶振，具備高精度，低損耗，低電壓，低抖動之特點，非常適合用于藍牙彩燈控制模塊，通信設備，智能家居，5G等領域。

藍牙彩燈控制模塊溫補晶振編碼X1G005401001300，TCXO溫補晶振，VCXO壓控晶振，VC-TCXO壓控溫補晶振，OCXO恒溫晶振，差分晶振等。每種石英晶體振蕩器都具備不一樣的功能,但同樣擁有低功耗，低電壓電流，低相位抖動，低相噪等優異特性。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	F.Tol@25°C	Ope Temperature
X1G005401000200	TG5032SFN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401000300	TG5032SFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401000500	TG5032SFN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401000600	TG5032SFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401000700	TG5032SFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401000900	TG5032SFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001000	TG5032SFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005401001100	TG5032SFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001200	TG5032SFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001300	TG5032SFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	2.700 to 3.000 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001500	TG5032SFN愛普生晶振	26.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001600	TG5032SFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001700	TG5032SFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001800	TG5032SFN	30.720000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401001900	TG5032SFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401002000	TG5032SFN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401002100	TG5032SFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005401002300	TG5032SFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
