- 產品型號：82843158
- 頻率：25MHz
- 尺寸：11.4*4.8mm
- 產品介紹：ECS-250-18-5PX-F-TR,CSM-7X,25MHz,貼片晶振,無源晶振，美國進口諧振器，無源晶體諧振器，SMD晶振，USB晶振，型號：CSM-7X系列晶振，編碼為:ECS-250-18-5PX-F-TR，...
-

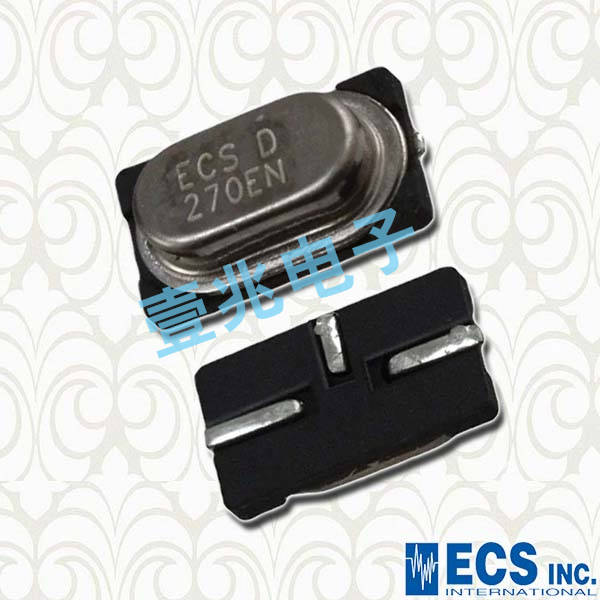

ECS-250-18-5PX-F-TR,CSM-7X,25MHz,貼片晶振
ECS-250-18-5PX-F-TR,CSM-7X,25MHz,貼片晶振,無源晶振，美國進口諧振器，無源晶體諧振器，SMD晶振，USB晶振，型號：CSM-7X系列晶振，編碼為:ECS-250-18-5PX-F-TR，頻率：25MHz,負載電容：20pf，尺寸：11.4*4.8mm,工作溫度為：-10°C ~ 70°C，貼片晶振，石英晶體諧振器，CSM-7X 貼片石英晶體 CSM-7X是低成本SMD的絕佳選擇 水晶，CSM-7X（5PX）的機箱高度最大為4.3毫米， 在電阻焊接金屬封裝中。薄型封裝 最大高度為3.2毫米。采用（5PLX）封裝，應用于通信設備，智能卡，,DSC,手機，電腦，無線晶振，GPS,工業用無線通信設備，醫療設備等用途。
.jpg)
ECS-250-18-5PX-F-TR,CSM-7X,25MHz,貼片晶振
| PARAMETERS | CONDITIONS | CSM-7X | UNITS | ||||||||||||||||||
| MIN | TYP | MAX | |||||||||||||||||||
| Frequency Range | fo | 25 | MHz | ||||||||||||||||||
| Frequency Tolerance | at +25°C | ± 30 | ppm | ||||||||||||||||||
| Frequency Stability | Standard -10 to +70°C | ± 50 | ppm | ||||||||||||||||||
| Shunt Capacitance | Co | 7 | pF | ||||||||||||||||||
| Load Capacitance (CL) | Specify in P/N | 10 | 20 | Series | pF | ||||||||||||||||
| Drive Level | 500 | µW | |||||||||||||||||||
| Operating Temperature | -10 | +70 | °C | ||||||||||||||||||
| Storage Temperature | -55 | +125 | °C | ||||||||||||||||||
| Aging (Per Year) | @ +25°C ±3°C | ±5 | ppm | ||||||||||||||||||
.jpg)
ECS-160-20-5PX-TR,CSM-7X,16MHzm,美國進口晶振
.png)
.png)
| Manufacturer Part Number原廠編碼 | 晶振 | Series型號 | Frequency |
| ECS-120-20-5PX-TR | ECS晶振 | CSM-7X | 12MHz |
| ECS-250-20-3X-TR | ECS晶振 | CSM-3X | 25MHz |
| ECS-120-20-3X-TR | ECS晶振 | CSM-3X | 12MHz |
| ECS-160-20-3X-TR | ECS晶振 | CSM-3X | 16MHz |
| ECS-143-20-3X-TR | ECS晶振 | CSM-3X | 14.31818MHz |
| ECS-147.4-20-3X-TR | ECS晶振 | CSM-3X | 14.7456MHz |
| ECS-184-20-3X-TR | ECS晶振 | CSM-3X | 18.432MHz |
| ECS-200-20-3X-TR | ECS晶振 | CSM-3X | 20MHz |
| ECS-245.7-20-3X-TR | ECS晶振 | CSM-3X | 24.576MHz |
| ECS-286.3-20-3X-EN-TR | ECS晶振 | CSM-3X | 28.63636MHz |
| ECS-300-20-3X-EN-TR | ECS晶振 | CSM-3X | 30MHz |
| ECS-400-20-3X-EN-TR | ECS晶振 | CSM-3X | 40MHz |
| ECS-49-20-5PX-TR | ECS晶振 | CSM-7X | 4.9152MHz |
| ECS-160-20-3X-EN-TR | ECS晶振 | CSM-3X | 16MHz |
| ECS-122.8-20-3X-EN-TR | ECS晶振 | CSM-3X | 12.288MHz |
| ECS-147.4-20-3X-EN-TR | ECS晶振 | CSM-3X | 14.7456MHz |
| ECS-250-20-3X-EN-TR | ECS晶振 | CSM-3X | 25MHz |
| ECS-50-20-5PX-TR | ECS晶振 | CSM-7X | 5MHz |
| ECS-120-18-5PX-TR | ECS晶振 | CSM-7X | 12MHz |
| ECS-40-20-5PX-TR | ECS晶振 | CSM-7X | 4MHz |
| ECS-80-18-5PX-TR | ECS晶振 | CSM-7X | 8MHz |
| ECS-184-18-5PX-TR | ECS晶振 | CSM-7X | 18.432MHz |
| ECS-147.4-20-5PX-TR | ECS晶振 | CSM-7X | 14.7456MHz |
| ECS-160-20-5PX-TR | ECS晶振 | CSM-7X | 16MHz |
| ECS-245.7-20-5PX-TR | ECS晶振 | CSM-7X | 24.576MHz |
| ECS-250-18-5PX-F-TR | ECS晶振 | CSM-7X | 25MHz |
| ECS-240-12-5PX-TR | ECS晶振 | CSM-7X | 24MHz |
| ECS-36-20-5PX-TR | ECS晶振 | CSM-7X | 3.6864MHz |
| ECS-100-18-5PX-TR | ECS晶振 | CSM-7X | 10MHz |
| ECS-98.3-20-5PX-TR | ECS晶振 | CSM-7X | 9.8304MHz |
| ECS-184-20-5PX-TR | ECS晶振 | CSM-7X | 18.432MHz |
| ECS-35-17-5PX-TR | ECS晶振 | CSM-7X | 3.579545MHz |
| ECS-110.5-S-5PX-TR | ECS晶振 | CSM-7X | 11.0592MHz |
| ECS-200-20-5PX-TR | ECS晶振 | CSM-7X | 20MHz |
| ECS-36-S-5PX-TR | ECS晶振 | CSM-7X | 3.6864MHz |
| ECS-41-20-5PX-TR | ECS晶振 | CSM-7X | 4.096MHz |
| ECS-200-16-5PX-TR | ECS晶振 | CSM-7X | 20MHz |
| ECS-240-20-5PX-TR | ECS晶振 | CSM-7X | 24MHz |
| ECS-60-32-5PX-TR | ECS晶振 | CSM-7X | 6MHz |
| ECS-73-20-5PX-TR | ECS晶振 | CSM-7X | 7.3728MHz |
| ECS-92.1-20-5PX-TR | ECS晶振 | CSM-7X | 9.216MHz |
| ECS-40-S-5PX-TR | ECS晶振 | CSM-7X | 4MHz |
| ECS-160-S-5PX-TR | ECS晶振 | CSM-7X | 16MHz |
| ECS-120-20-3X-EN-TR | ECS晶振 | CSM-3X | 12MHz |
| ECS-200-20-3X-EN-TR | ECS晶振 | CSM-3X | 20MHz |
| ECS-60-20-5PX-TR | ECS晶振 | CSM-7X | 6MHz |
| ECS-184-S-5PX-TR | ECS晶振 | CSM-7X | 18.432MHz |
| ECS-50-S-5PX-TR | ECS晶振 | CSM-7X | 5MHz |
| ECS-110.5-32-5PX-TR | ECS晶振 | CSM-7X | 11.0592MHz |
| ECS-61-32-5PX-TR | ECS晶振 | CSM-7X | 6.144MHz |
| ECS-120-32-5PX-TR | ECS晶振 | CSM-7X | 12MHz |
| ECS-270-18-5PX-F-TR | ECS晶振 | CSM-7X | 27MHz |
| ECS-49-S-5PX-TR | ECS晶振 | CSM-7X | 4.9152MHz |
| ECS-100-S-5PX-TR | ECS晶振 | CSM-7X | 10MHz |
| ECS-147.4-S-5PX-TR | ECS晶振 | CSM-7X | 14.7456MHz |
| ECS-135.6-12-5PX-TR | ECS晶振 | CSM-7X | 13.56MHz |
.jpg)
