首頁歐美晶振 ECS晶振ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振

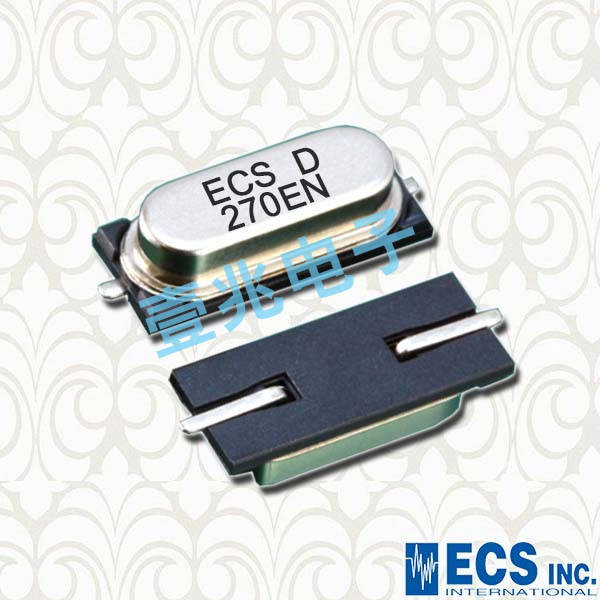

ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振

產品型號：55916848
頻率：12.288MHz

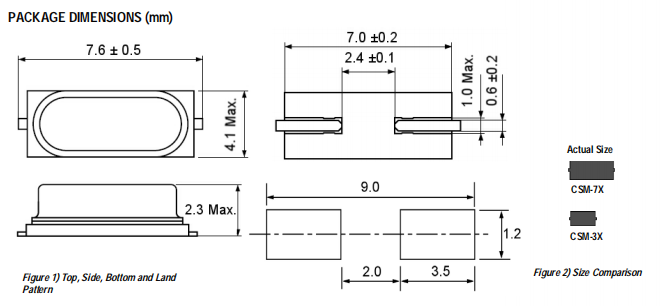

尺寸：7.6*4.1mm
產品介紹：ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振,美國進口諧振器，石英晶體諧振器，ECS晶振，壹兆電子，型號：CSM-3X系列晶振，編碼為:ECS-122.8-20-3X-EN-T...

ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振,美國進口諧振器，石英晶體諧振器，ECS晶振，壹兆電子，型號：CSM-3X系列晶振，編碼為:ECS-122.8-20-3X-EN-TR，頻率：12.288MHz,負載電容：20pf，尺寸：7.6*4.1mm,工作溫度為：-40°C ~ 85°C，無源晶體諧振器，SMD晶振，CSM-3X 石英晶體 CSM-3X是小型低輪廓電阻焊接型貼片石英晶體。減少CSM-7X（HC-49 usx）的占地面積 SMD）減少50%，應用于手機，電腦，GPS,工業用無線通信設備等。

ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振

PARAMETERS

CONDITIONS

CSM-3X

UNITS

MIN

TYP

MAX

Frequency Range

12.288

MHz

Frequency Tolerance

at +25°C

± 30

ppm

Frequency Stability ref @+25°C

Standard -10 to +70°C

± 50

ppm

Shunt Capacitance

Load Capacitance (CL)

Specify in P/N

Series

Drive Level

100

µW

Operating Temperature

Standard

-10

+70

°C

Storage Temperature

-40

+85

°C

Aging (First Year)

@ +25°C ±3°C

±5

ppm

ECS-122.8-20-3X-EN-TR,CSM-3X,12.288MHz,ECS貼片晶振

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Frequency
ECS-120-20-5PX-TR	ECS晶振	CSM-7X	12MHz
ECS-250-20-3X-TR	ECS晶振	CSM-3X	25MHz
ECS-120-20-3X-TR	ECS晶振	CSM-3X	12MHz
ECS-160-20-3X-TR	ECS晶振	CSM-3X	16MHz
ECS-143-20-3X-TR	ECS晶振	CSM-3X	14.31818MHz
ECS-147.4-20-3X-TR	ECS晶振	CSM-3X	14.7456MHz
ECS-184-20-3X-TR	ECS晶振	CSM-3X	18.432MHz
ECS-200-20-3X-TR	ECS晶振	CSM-3X	20MHz
ECS-245.7-20-3X-TR	ECS晶振	CSM-3X	24.576MHz
ECS-286.3-20-3X-EN-TR	ECS晶振	CSM-3X	28.63636MHz
ECS-300-20-3X-EN-TR	ECS晶振	CSM-3X	30MHz
ECS-400-20-3X-EN-TR	ECS晶振	CSM-3X	40MHz
ECS-49-20-5PX-TR	ECS晶振	CSM-7X	4.9152MHz
ECS-160-20-3X-EN-TR	ECS晶振	CSM-3X	16MHz
ECS-122.8-20-3X-EN-TR	ECS晶振	CSM-3X	12.288MHz
ECS-147.4-20-3X-EN-TR	ECS晶振	CSM-3X	14.7456MHz
ECS-250-20-3X-EN-TR	ECS晶振	CSM-3X	25MHz
ECS-50-20-5PX-TR	ECS晶振	CSM-7X	5MHz
ECS-120-18-5PX-TR	ECS晶振	CSM-7X	12MHz
ECS-40-20-5PX-TR	ECS晶振	CSM-7X	4MHz
ECS-80-18-5PX-TR	ECS晶振	CSM-7X	8MHz
ECS-184-18-5PX-TR	ECS晶振	CSM-7X	18.432MHz
ECS-147.4-20-5PX-TR	ECS晶振	CSM-7X	14.7456MHz
ECS-160-20-5PX-TR	ECS晶振	CSM-7X	16MHz
ECS-245.7-20-5PX-TR	ECS晶振	CSM-7X	24.576MHz
ECS-250-18-5PX-F-TR	ECS晶振	CSM-7X	25MHz
ECS-240-12-5PX-TR	ECS晶振	CSM-7X	24MHz
ECS-36-20-5PX-TR	ECS晶振	CSM-7X	3.6864MHz
ECS-100-18-5PX-TR	ECS晶振	CSM-7X	10MHz
ECS-98.3-20-5PX-TR	ECS晶振	CSM-7X	9.8304MHz
ECS-184-20-5PX-TR	ECS晶振	CSM-7X	18.432MHz
ECS-35-17-5PX-TR	ECS晶振	CSM-7X	3.579545MHz
ECS-110.5-S-5PX-TR	ECS晶振	CSM-7X	11.0592MHz
ECS-200-20-5PX-TR	ECS晶振	CSM-7X	20MHz
ECS-36-S-5PX-TR	ECS晶振	CSM-7X	3.6864MHz
ECS-41-20-5PX-TR	ECS晶振	CSM-7X	4.096MHz
ECS-200-16-5PX-TR	ECS晶振	CSM-7X	20MHz
ECS-240-20-5PX-TR	ECS晶振	CSM-7X	24MHz
ECS-60-32-5PX-TR	ECS晶振	CSM-7X	6MHz
ECS-73-20-5PX-TR	ECS晶振	CSM-7X	7.3728MHz
ECS-92.1-20-5PX-TR	ECS晶振	CSM-7X	9.216MHz
ECS-40-S-5PX-TR	ECS晶振	CSM-7X	4MHz
ECS-160-S-5PX-TR	ECS晶振	CSM-7X	16MHz
ECS-120-20-3X-EN-TR	ECS晶振	CSM-3X	12MHz
ECS-200-20-3X-EN-TR	ECS晶振	CSM-3X	20MHz
ECS-60-20-5PX-TR	ECS晶振	CSM-7X	6MHz
ECS-184-S-5PX-TR	ECS晶振	CSM-7X	18.432MHz
ECS-50-S-5PX-TR	ECS晶振	CSM-7X	5MHz
ECS-110.5-32-5PX-TR	ECS晶振	CSM-7X	11.0592MHz
ECS-61-32-5PX-TR	ECS晶振	CSM-7X	6.144MHz
ECS-120-32-5PX-TR	ECS晶振	CSM-7X	12MHz
ECS-270-18-5PX-F-TR	ECS晶振	CSM-7X	27MHz
ECS-49-S-5PX-TR	進口晶振	CSM-7X	4.9152MHz
ECS-100-S-5PX-TR	ECS晶振	CSM-7X	10MHz
ECS-147.4-S-5PX-TR	ECS晶振	CSM-7X	14.7456MHz
ECS-135.6-12-5PX-TR	ECS晶振	CSM-7X	13.56MHz
ECS-120-S-5PX-TR	ECS晶振	CSM-7X	12MHz
ECS-122.8-S-5PX-TR	ECS晶振	CSM-7X	12.288MHz
ECS-.327-12.5-34B-TR	ECS晶振	ECX-31B	32.768kHz
ECS-.327-12.5-17X-TR	ECS晶振	ECX-306X	32.768kHz
ECS-.327-12.5-13X	ECS晶振	ECS-2X6X	32.768kHz
ECS-.327-12.5-38-TR	ECS晶振	ECX-71	32.768kHz
ECS-.327-7-34B-TR	ECS 晶振	ECX-31B	32.768kHz
ECS-.327-6-17X-TR	ECS 晶振	ECX-306X	32.768kHz
ECS-200-18-5PX-TR	ECS 晶振	CSM-7X	20MHz
ECS-.327-12.5-17X-C-TR	ECS 晶振	ECX-306X	32.768kHz
ECS-.327-CDX-1128	ECS 晶振	ECS-CDX	32.768kHz
ECS-.327-7-38-TR	ECS 晶振	ECX-71	32.768kHz
ECS-80-18-5PX-JEM-TR	ECS 晶振	CSM-7X	8MHz
ECS-49-18-5PX-JEM-TR	ECS 晶振	CSM-7X	4.9152MHz
ECS-.327-12.5-13FLX-C	ECS 晶振	ECS-2x6-FLX	32.768kHz
ECS-35-17-5PXDN-TR	ECS 晶振	CSM-7X-DN	3.579545MHz
ECS-120-12-33Q-JES-TR	ECS 晶振	ECX-33Q	12MHz
ECS-135.6-12-33Q-JES-TR	ECS 晶振	ECX-33Q	13.56MHz
ECS-147.4-12-33Q-JES-TR	ECS 晶振	ECX-33Q	14.7456MHz
ECS-160-12-33Q-JES-TR	ECS 晶振	ECX-33Q	16MHz
ECS-163.8-12-33Q-JES-TR	ECS 晶振	ECX-33Q	16.384MHz
ECS-184-12-33Q-JES-TR	ECS 晶振	ECX-33Q	18.432MHz
ECS-240-12-33Q-JES-TR	ECS 晶振	ECX-33Q	24MHz
ECS-250-12-33Q-JES-TR	ECS 晶振	ECX-33Q	25MHz
ECS-270-12-33Q-JES-TR	ECS 晶振	ECX-33Q	27MHz
ECS-286.3-12-33Q-JES-TR	ECS 晶振	ECX-33Q	28.63636MHz
ECS-300-12-33Q-JES-TR	ECS 晶振	ECX-33Q	30MHz
ECS-40-20-5PXDN-TR	ECS 晶振	CSM-7X-DN	4MHz
ECS-80-18-5PXDN-TR	ECS 晶振	CSM-7X-DN	8MHz
ECS-3X8X	ECS 晶振	ECS-3X8X	32.768kHz
ECS-.327-12.5-13	ECS 晶振	ECS-2x6	32.768kHz
ECS-3X8	ECS 晶振	ECS-3X8	32.768kHz
ECS-40-18-5PXEN-TR	ECS 晶振	CSM-7X	4MHz
ECS-76.8-18-5PXEN-TR	ECS 晶振	CSM-7X	7.68MHz
ECS-98.3-18-5PXEN-TR	ECS 晶振	CSM-7X	9.8304MHz
ECS-42-18-5PXEN-TR	ECS 晶振	CSM-7X	4.194304MHz
ECS-110-18-5PXEN-TR	ECS 晶振	CSM-7X	11MHz
ECS-110.5-18-5PXEN-TR	ECS 晶振	CSM-7X	11.0592MHz
ECS-160-10-36Q-ES-TR	ECS 晶振	ECX-2236Q	16MHz
ECS-240-10-36Q-ES-TR	ECS 晶振	ECX-2236Q	24MHz
ECS-250-10-36Q-ES-TR	ECS 晶振	ECX-2236Q	25MHz
ECS-260-10-36Q-ES-TR	ECS 晶振	ECX-2236Q	26MHz
ECS-270-10-36Q-ES-TR	ECS 晶振	ECX-2236Q	27MHz
ECS-320-10-36Q-ES-TR	ECS 晶振	ECX-2236Q	32MHz
ECS-.327-12.5-34B-C-TR	ECS 晶振	ECX-31B	32.768kHz
ECS-.327-9-34B-TR	ECS 晶振	ECX-31B	32.768kHz
ECS-135.6-20-3X-TR	ECS 晶振	CSM-3X	13.56MHz
ECS-196.6-20-3X-TR	ECS 晶振	CSM-3X	19.6608MHz
ECS-184-20-3X-EN-TR	ECS 晶振	CSM-3X	18.432MHz
ECS-286.3-20-3X-TR	ECS 晶振	CSM-3X	28.63636MHz
